Cylindrical Pressure Vessel

Banner - Cylindrical Pressure Vessel

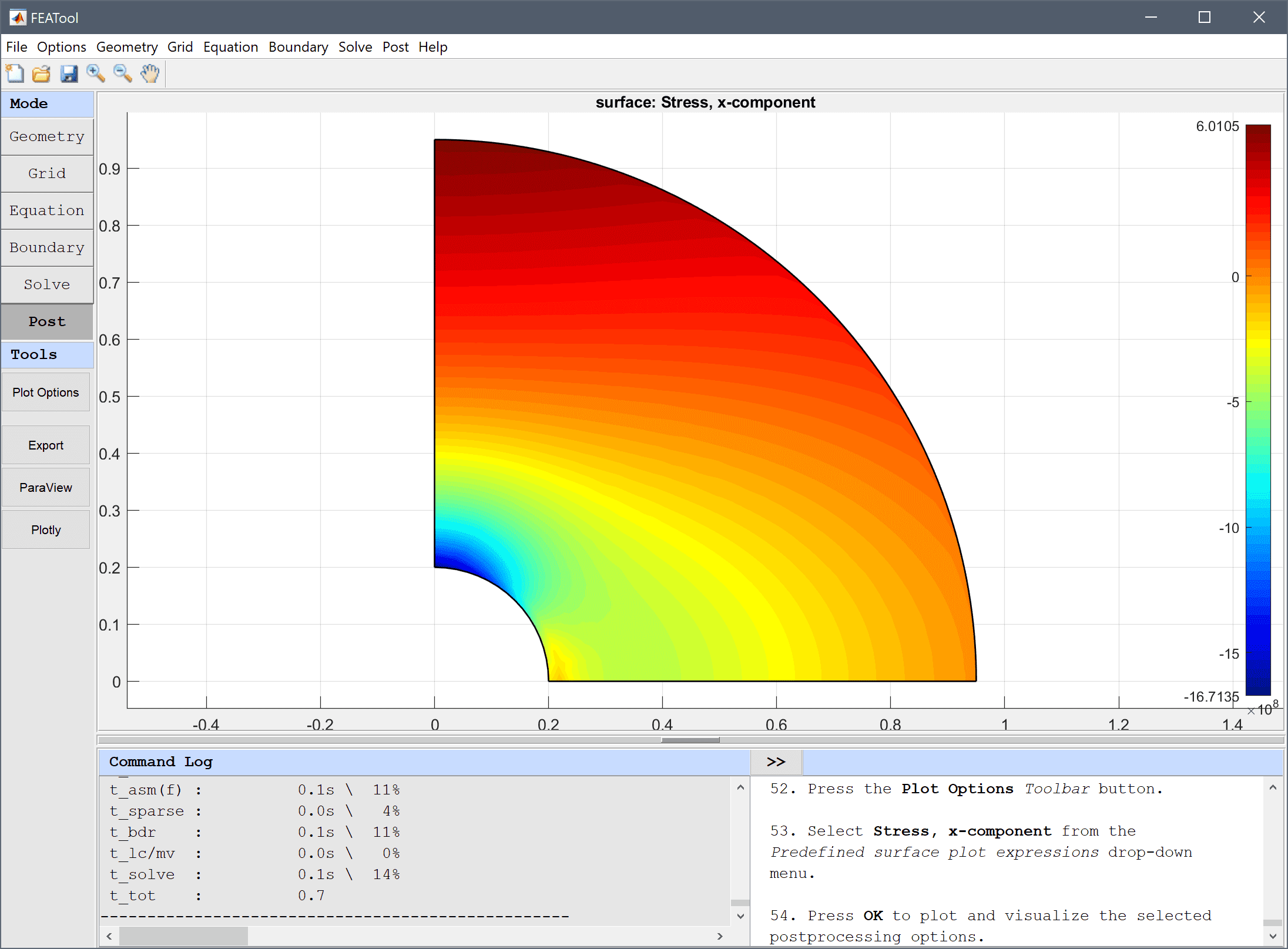

Cylindrical Pressure Vessel Image

Model Data

Type: structural mechanics

Physics Modes: plane strain

Keywords: validation

A long cylindrical thick walled pressure vessel is here subjected to both a high internal pressure and thermal expansion. The model and solution is symmetric and also suitable for modeling with the two-dimensional plane strain approximation. This problem allows for an analytical solution which is used to validate and test the accuracy of the simulation.

This model is available as an automated tutorial by selecting Model Examples and Tutorials… > Structural Mechanics > Cylindrical Pressure Vessel from the File menu. Or alternatively, follow the linked step-by-step instructions.


FEATool Multiphysics Tutorial - Cylindrical Pressure Vessel


Reference

[1] Barber JR. Solid Mechanics and Its Applications, Intermediate Mechanics of Materials, vol. 175, 2nd ed. Springer, 2011.
