Model Data

Type: structural mechanics

Physics Modes: solid stress strain

Keywords: linear elasticity validation

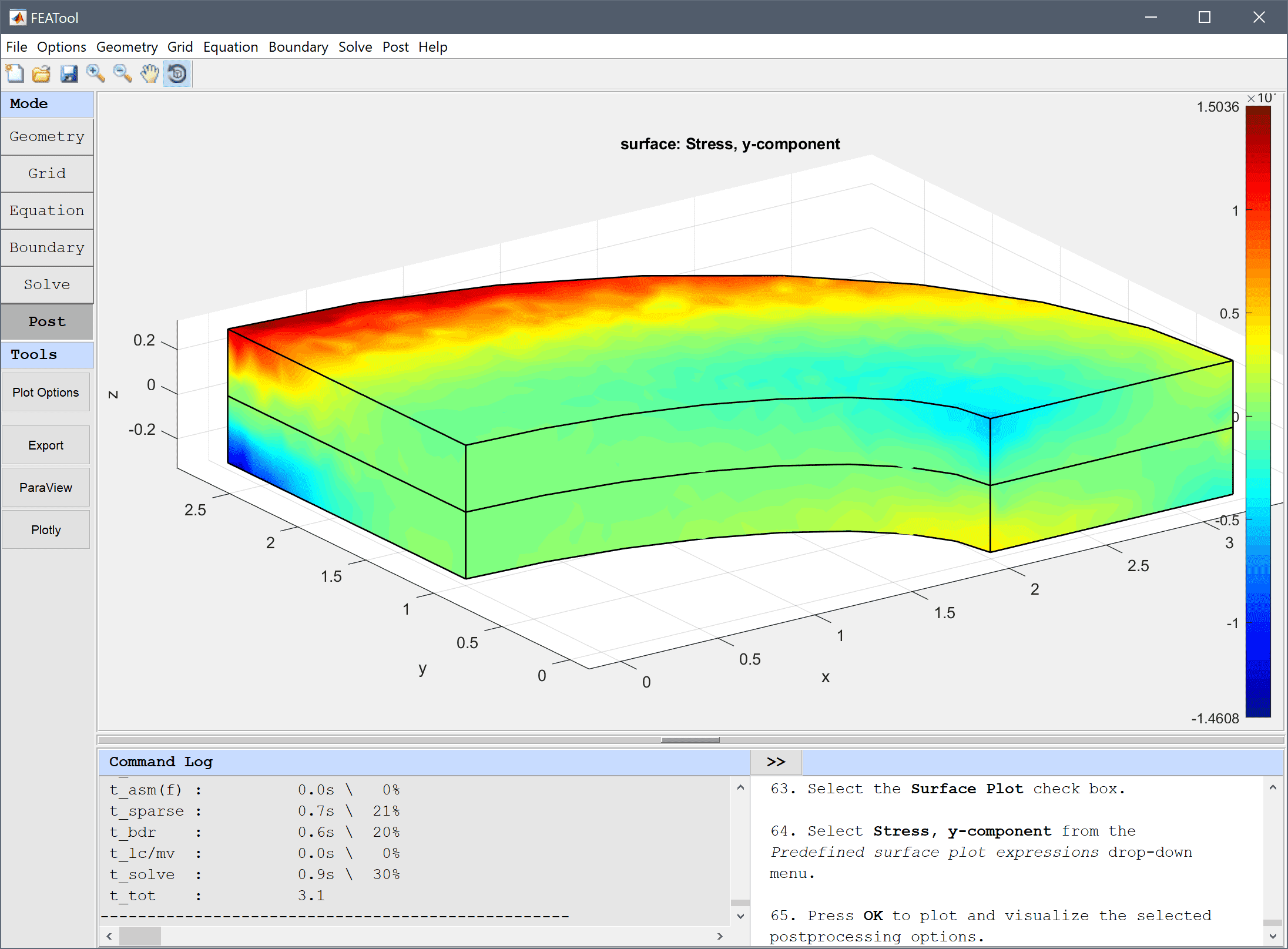

This is a benchmark and validation model for linear elasticity where an elliptical thick plate with a hole is subjected to a uniform pressure load of 106 MPa [1]. The outer surface is assumed to be constrained from expansion, in addition to the center line which is fixed in the z-direction. Symmetry is also utilized so that only a quarter of the geometry is modeled.

This model is available as an automated tutorial by selecting Model Examples and Tutorials… > Structural Mechanics > Stress Analysis of a Thick Plate from the File menu. Or alternatively, follow the linked step-by-step instructions.


FEATool Multiphysics Tutorial - Stress Analysis of a Thick Plate


Reference

[1] Davies G, Fenner RT, Lewis RW. NAFEMS Background To Benchmarks, LE10 Thick plate - normal pressure, 1992.
