Laminar Channel Flow

Banner - Laminar Channel Flow

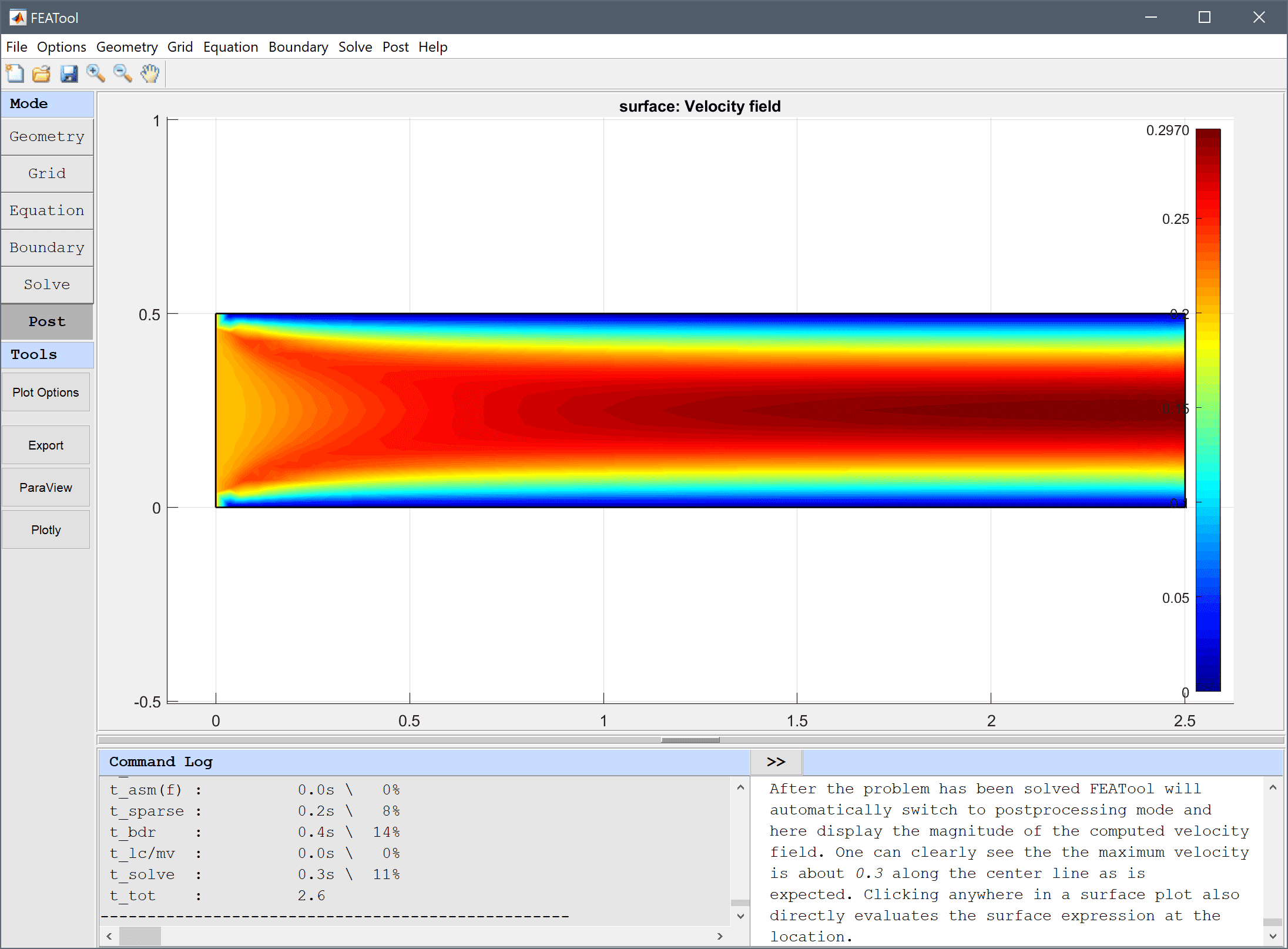

Laminar Channel Flow Image

Model Data

Type: fluid dynamics

Physics Modes: navier stokes equations

Keywords: validation

Stationary and incompressible laminar Poiseuille flow in a two- dimensional rectangular channel. With a constant inflow profile u(0,y) = Umax and fixed no-slip walls, a fully developed laminar parabolic profile, u(y,L) = Umax4/h2y(h-y) is expected to develop at the outflow.

This model is available as an automated tutorial by selecting Model Examples and Tutorials… > Fluid Dynamics > Laminar Channel Flow from the File menu. Or alternatively, follow the linked step-by-step instructions.


FEATool Multiphysics Tutorial - Laminar Channel Flow
