Flow in Porous Media

Banner - Flow in Porous Media

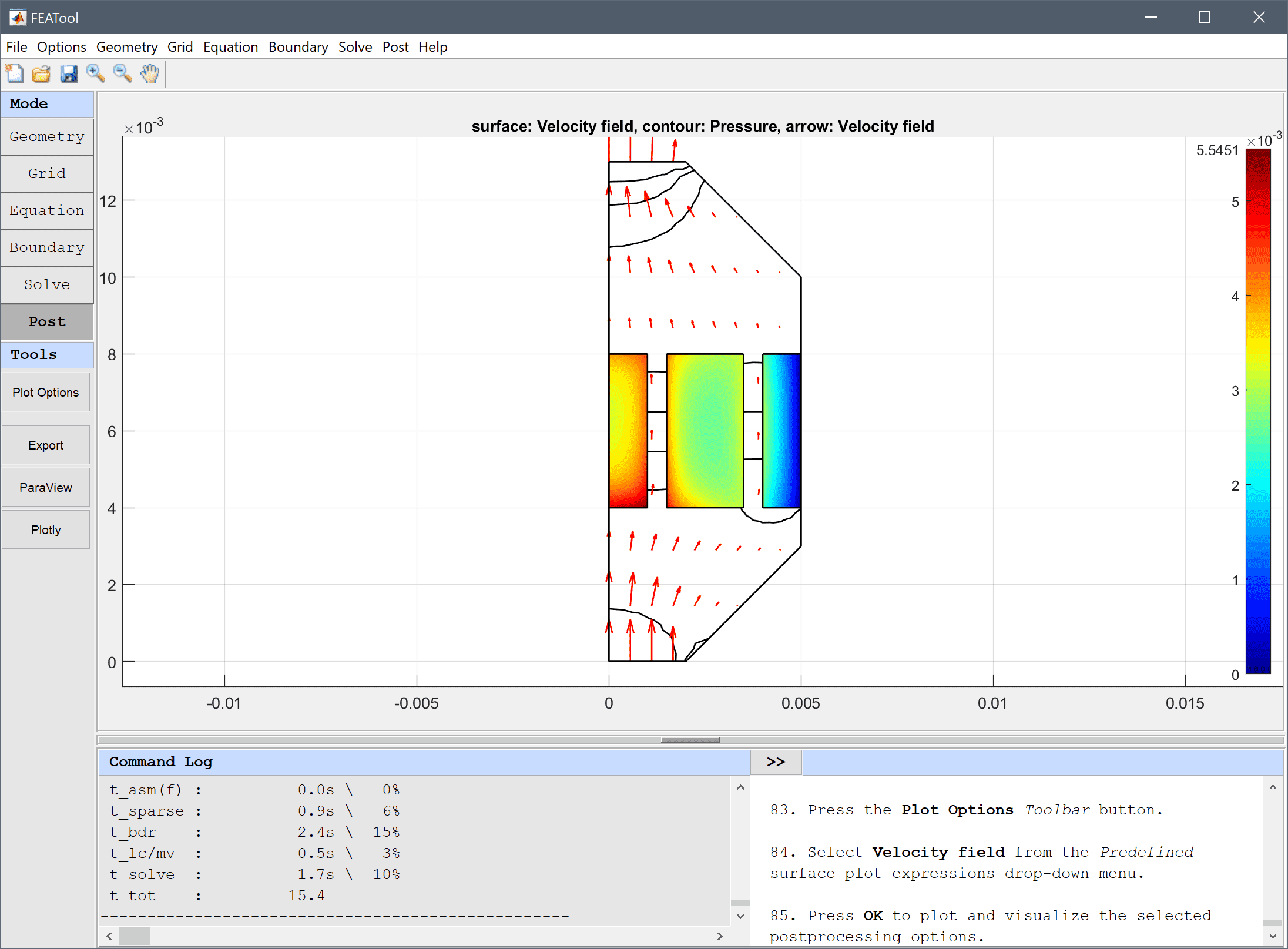

Flow in Porous Media Image

Model Data

Type: multiphysics fluid dynamics

Physics Modes: navier stokes equations brinkman equations

Keywords: axisymmetry porous media flow multi domain

Axisymmetric laminar fluid flow in a diffusor duct or reaction chamber blocked by sections of a porous material. The model features several partially active subdomains with the Brinkman equations governing the fluid flow. The flow field with and without the porous material is compared.

This model is available as an automated tutorial by selecting Model Examples and Tutorials… > Multiphysics > Flow in Porous Media from the File menu. Or alternatively, follow the linked step-by-step instructions.


FEATool Multiphysics Tutorial - Flow in Porous Media
